- This is an Automated Water Pumping Controls by maintaining the Water Level, Chemical Dosing, PH Level Monitoring and Agitations.
- The system is being controlled by SIEMENS S7-200 PLC and PARKER SSD AC Drives.
Duplex Water Pump Control

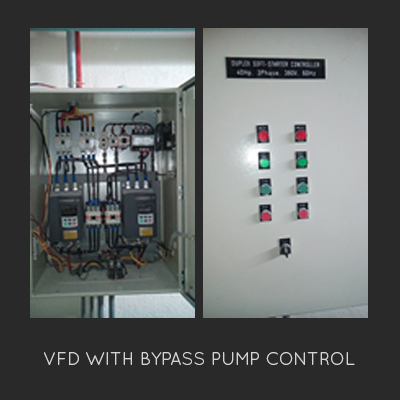

- Controlled by POWTRAN DUAL DIGITAL SOFT STARTER 60HP/45KW/460VAC with External Bypass Contactor.

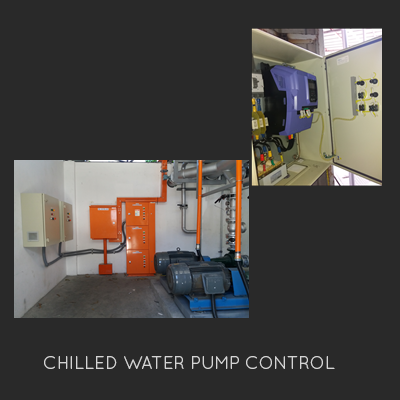

Chilled Water Pump Control
- Controlled by INVERTEK HVAC ECO DRIVE IP20 60HP/45KW/460VAC.
- Operate in a close loop operation to maintain the desired working pressure using its PID control which means low usage period slow down the pump motor thus achieved significant ENERGY COST SAVINGS.
- Having designed to withstand supply surges in the area by providing AC Line Choke from LEIPOLE.
- Protected by Fast Acting Semiconductor Fuses.
- The INVERTEK Drive special feature KWH usage, Alarm Data Log Status (DC Voltage, Current, Temp).
- The system has built-in BACNET for systems integration and PID Controls.

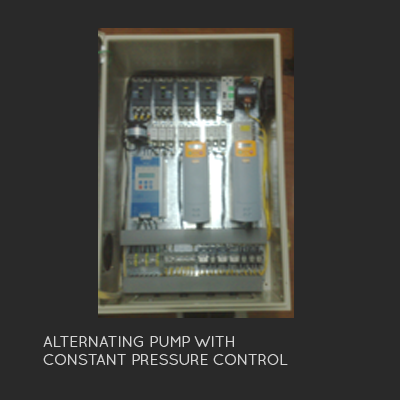

Paco Water Pump Controls
- This is a Three(3) Pumping System that runs 2 pumps simultaneously and rest other pump for every 8 hours.
- The system is being controlled by Two(2) Parker AC Drives and One(1) SOLCON without any PLC or Sequential Controller. Logic Programming was done within the PARKER AC Drives.
- The system maintains the constant pressure requirement by the plant of 60PSI using the Drive PID Controls which means at low demand motors slow down thus giving a significant ENERGY COST SAVINGS.

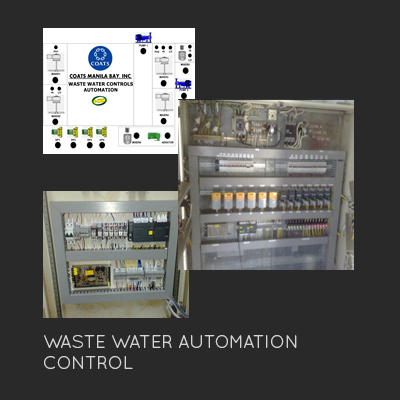

water industry application
Our Other Capabilities:
- Upgrading Conventional Pumps and Fans Control to AC Drives using its PID Control to achieve BIG SAVINGS on ENERGY COSTS.
- Integration of HANSFORD Vibration Sensors on those expensive, inaccessible and critical rotating machineries to avoid very costly unscheduled machine breakdown due to excessive vibration/bearing damage.
- Upgrading AC and DC Power Drive Systems, PLC System, SCADA and Process Automations.
- Real Time Maintenance Management System which include Tool Life Monitoring, Equipment Performance Monitoring and Condition Based Monitoring among others.
